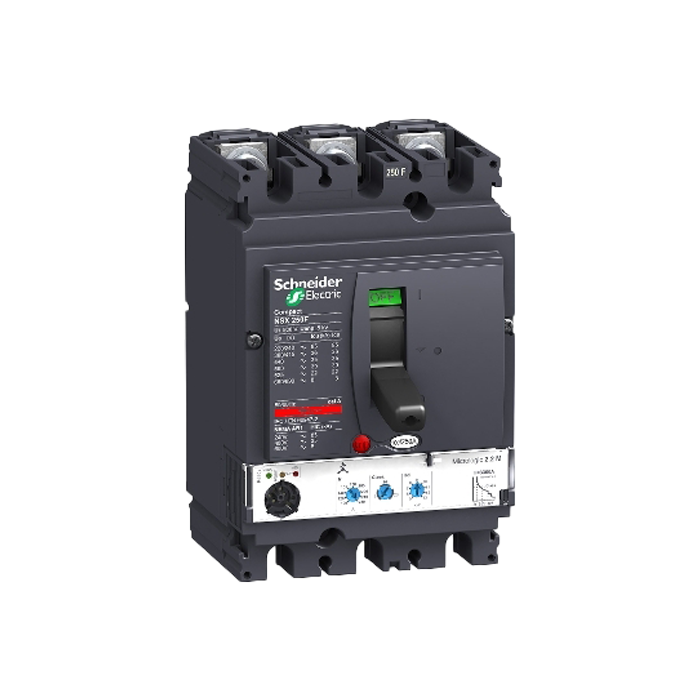

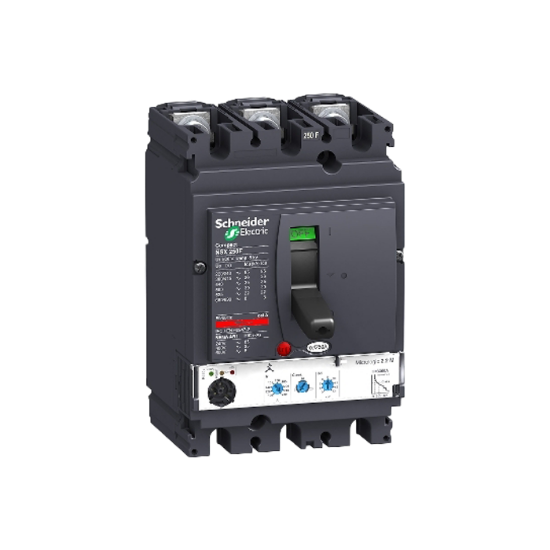

MOULDED CASE CIRCUIT BREAKERS (MCCB) | 36KA | 160A | THERMAL | 3 POLES | LV516333

MOULDED CASE CIRCUIT BREAKERS (MCCB) | 36KA | 160A | THERMAL | 3 POLES | LV516333

SKU ID: E21001.0000022.00

Review: 0 Ratings

Brand: Schneider

Product Specification
Brand Description

Breaking Capacity - kA
36
Rated Current - A
160
Protection - Type
Thermal
No. of poles
3
Model No
LV516333
Model
EasyPact CVS
Device application
Distribution
Earth-leakage protection
Without
Network type
AC
Utilisation category
Category A
Trip unit name
TM-D
Trip unit technology
Thermal-magnetic
Protection type
Short-circuit (Mag), OL (Thermal)
Rated impulse withstand voltage
8 kV (EN/IEC 60947-2)
Network frequency
50/60 Hz
Breaking capacity code
B
Mechanical durability
30000 Cycles
Electrical durability
12000 Cycles at 415 V
Control type
Toggle
Thermal protection range
11.2...16 A
Long time pick-up type
Ir Adjustable
Long time pick-up range
0.7...1 x in
Long time delay adjustment type
Fixed
Instantaneous pick-up type li
Fixed
Instantaneous pick-up range
190 A
Contact position indicator
Yes
Mounting support
Backplate
Mounting mode
Fixed
Upside connection
Front
Downside connection
Front
Connections - terminals
Screw connection
Standards
IEC 60947-2, EN 60947-2
Product certifications
IEC, GOST
Electrical shock protection class
Class II
Pollution degree
3 (IEC 60664-1)
IP degree of protection
IP40
Ambient air temperature for operation
-25...70 °C
Ambient air temperature for storage
-50...85 °C
