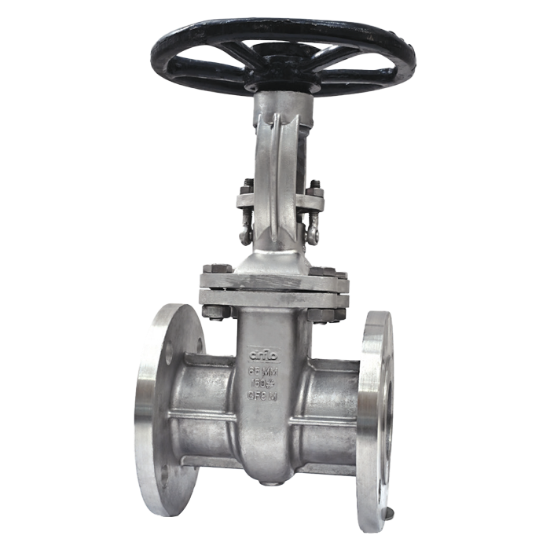

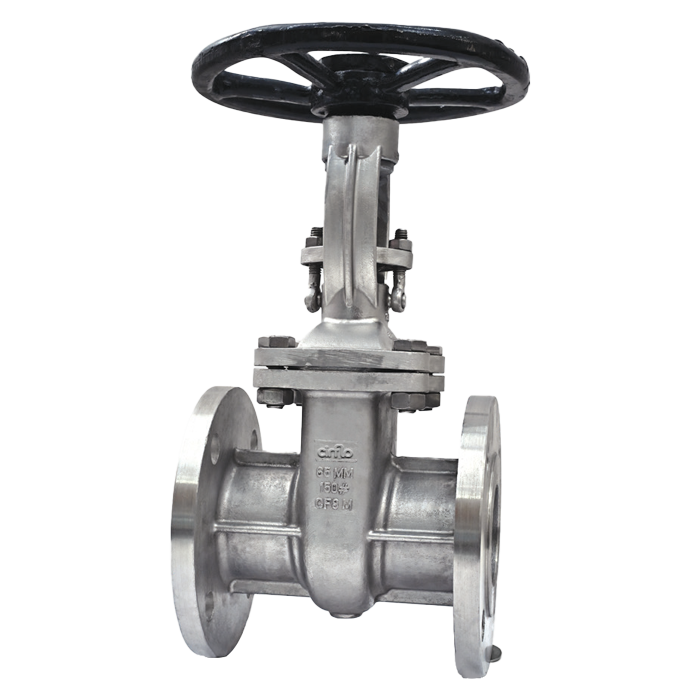

GATE VALVES | MANUAL - GEAR OPERATED | CF3M (SS316L) | CF3M (SS316L) | 100NB | 150# | FLANGED END

GATE VALVES | MANUAL - GEAR OPERATED | CF3M (SS316L) | CF3M (SS316L) | 100NB | 150# | FLANGED END

SKU ID: E15003.0000060.00

Review: 0 Ratings

Brand: Cirflo

Product Specification
Brand Description

Body - MOC
CF3M (SS316L)
End connection - Type
Flanged end
Internal - MOC
CF3M (SS316L)
Operation - Type
Manual - Gear operated
Pressure class
150#
Size - nb
100
Blasting
SA2.5
Body, Bonnet, Cover - MOC
CF3M (SS316L)
Bolt - MOC
A193 Gr.B7
Colour Code
Body : RAL 9005, Handle : RAL 1026
Density of Process fluid
~ 1030-1050
Design Standard
IS 14846; BS 5163; API 600/602
Disc - MOC
CF3M (SS316L)
Gland Packing - MOC
PTFE
Handwheel
Malleable Iron
Hydrotest Duration For Body - Seconds
180
Hydrotest Duration For Seat - Seconds
180
Hydrotest Pressure For Body - Kg/cm2
30
Hydrotest Pressure For Seat - Kg/cm2
22
Leakage Class
Class VI (No leakage)
Locking device
Included
Nut - MOC
A194 Gr.2H
Operating pressure - kg/cm2
20
Operating/Maximum temp - C
Ambient / 60
Paint
PU Paint
Range of Flow control - %
0 to 100%
Seat - MOC
CF3M (SS316L)
Seat ring - MOC
CF3M (SS316L)
Stem - MOC
AISI 410
Stem packing
PTFE
Testing - Standard
API 598

Brand Code:

Cirflo
