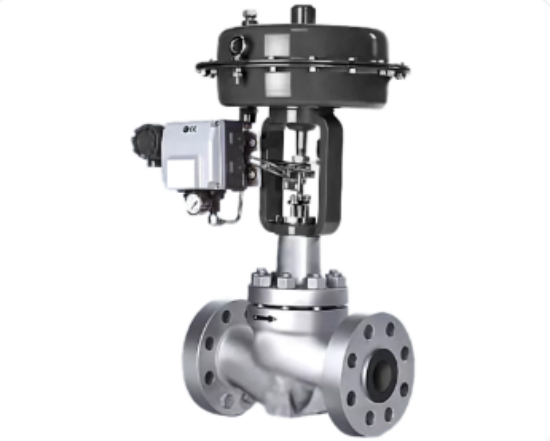

CONTROL VALVES | V NOTCH | CF8 (SS304) | CF8 (SS304) | PNEUMATIC | 80NB | 150#

CONTROL VALVES | V NOTCH | CF8 (SS304) | CF8 (SS304) | PNEUMATIC | 80NB | 150#

SKU ID: E15006.0000051.00

Review: 0 Ratings

Brand: Cirflo

Product Specification
Brand Description

Body - Type
V Notch
Body - MOC
CF8 (SS304)
Internal - MOC
CF8 (SS304)
Actuator - Type
Pneumatic
Size - nb
80
Pressure class
150#
AFR
5
Positioner Type
Electro-pneumatic
Process Fluid
Steam/ETP Water
End connection - Type
Flanged end
Bonnet - MOC
Standard
Gland Packing - MOC
PTFE
Gasket - MOC
PTFE
Plug - MOC
CF8 (SS304)
Bolt - MOC
A193 Gr.B7
Nut - MOC
A194 Gr.2H
Handwheel - MOC
Malleable Iron
Design Standard
ASME B 16.34 / ISO 17292 / API6D
Testing - Standard
ASME B 16.34 /API 598
Operating pressure - kg/cm2
20
Operating/Maximum temp - C
Ambient / 160
Range of Flow control - %
0 to 100%
Throtlling Application
0 - 100%
Actuator - MOC
Aluminum Alloy
Air pressure
5 -6
Ambient temperature - C
20 - 80
Protection class
IP 67
Zero Span Adjustment
Wrench setting
Position on power fail
Close
Input Signal
4-20 mA
Response time - s
1.3
Dead Band
0.003
Linearity
+- 1 %
Hysteresis
0.005
Repeatability
0.002
Air Consumption
0.25
Air Connection
1/4"
Conduit
SS316
Positioner Protection
IP 65
Positioner Material
Aluminum Alloy
Hydrotest Pressure For Body - Kg/cm2
30
Hydrotest Pressure For Seat - Kg/cm2
22
Hydrotest Duration For Body - Seconds
180
Hydrotest Duration For Seat - Seconds
180
Leakage Class Acc. To FCI-70.2
#N/A
Certifications
MTC 3.1 As per EN 10204
Blasting
SA2.5
Paint
PU Paint
Colour Code
Body:RAL 9005; Actuator:RAL 1026

Brand Code:

Cirflo
